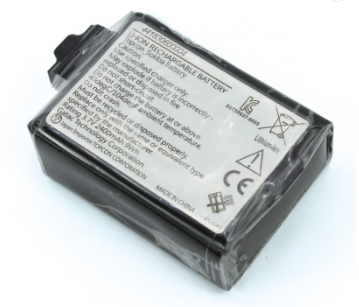

Battery For Getac PS535, PS535E, PS535F and Sokkia Topcon FC-25A, SHC-25 Data Collectors

Model: PS535

Specifications:

Used For Instruments:

Getac PS535, PS535E, PS535F and Sokkia Topcon FC-25A, SHC-25 Data Collectors

Features:

1. Leosurvey batteries are manufactured with top quality cells using the most up-to-date technology to ensure a long lasting charge with no memory effect.
2. All of the batteries are featured with stable circuit protection, over charging protection, over heat protection and short circuit protection.
3. Comes with 12 months manufacturer warranty.
4. This Battery Replacement is an extended life battery packed.
5. OEM campatible

Cell Type

Most survey batteires currently use nickel-cadmium (NiCd), nickel-metal hydride (NiMH) and Lithium Ion (Li-Ion) cells. The cell type is marked on the battery.

NiCd

NiMH cells have a higher internal resistance than NiCd cells and are therefore not suitable for such high charging and discharging currents, or low temperatures as NiCd cells. The voltage of the battery collapses rapidly at negative temperatures and high current loading. This can result in the activation of the deep discharge protection fitted in all Leica Geosystems batteries. This means that the full capacity of the NiMH batteries cannot be drawn at low temperatures. Leica Geosystems only uses NiMH cells that provide problem-free operation when supplying the current drawn by all Leica equipment, even at –20 °C (–4 °F).

NiMH

NiMH cells have a higher internal resistance than NiCd cells and are therefore not suitable for such high charging and discharging currents, or low temperatures as NiCd cells. The voltage of the battery collapses rapidly at negative temperatures and high current loading. This can result in the activation of the deep discharge protection fitted in all Leica Geosystems batteries. This means that the full capacity of the NiMH batteries cannot be drawn at low temperatures. Leosurvey only uses NiMH cells that provide problem-free operation when supplying the current drawn by all Leica equipment, even at –20 °C (–4 °F)

Li-lon

Li-Ion cells have a high energy density. This minimises battery size and weight. It is a low maintenance battery; there is no memory effect and no scheduled cycling is required to prolong the battery’s life. In addition, the self-discharge is less than half that compared to NiCd. The batteries have a lifetime of about 3 years from manufacture. This is caused by internal oxidation which is hastened at high temperatures. The Li-Ion batteries supplied by Leosurvey have a protection circuit to maintain safe operation, limits the peak voltage of each cell during charge and prevents the cell voltage from dropping too low on discharge. In addition, the cell temperature is monitored to prevent temperature extremes.

Leosurvey Instrument Co.,Ltd is a professional surveying accessories supplier in China. Items we supply covers:

1. Prisms (reflector prism, prism set, 360 degree prism, mini prism)

2. Prism Pole, Bipods and Tripods

3. Levelling Staff (Invar, Manganese, Aluminum)

4. Tripods (Aluminum, Wooden, Fiberglass)

5. Tribrach and Adaptors

6. Battery, cable and Chargers of different brands

7. GNSS pole and accessories

Our mission is to supply high quality and excellent service for our customers and partners. Meanwhile, we can custom-make products for our clients with different requirements. We are looking for reliable distributors all around the world, welcome to contact us for more!
