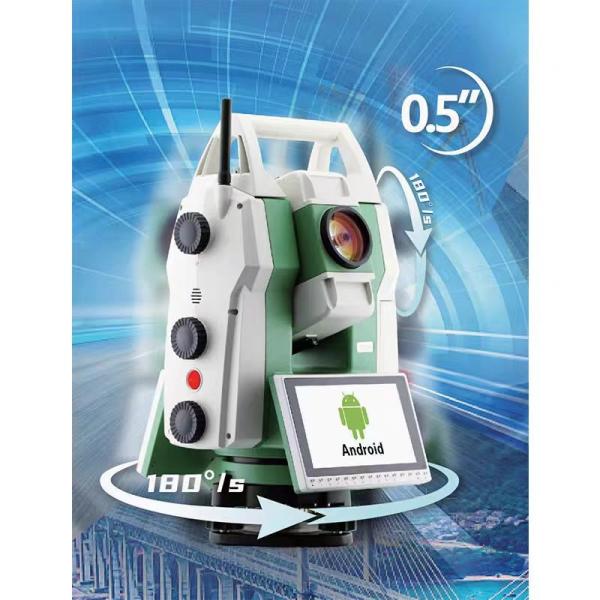

FOIF 2024 NEW RS10 Robotic Total Station
Product Description:
RS10 is a new generation of high-precision robotic total station
launched by FOIF. It adopts high-speed direct drive motor
technology, which rotates faster and has more accurate positioning.
It integrates high-speed automatic aiming, high-speed automatic
target recognition, high-speed angle measurement, high-speed
ranging and other new-generation technologies. Besides, it is
equipped with ANDROID 11.0 operating system. It can be widely used
in automatic deformation monitoring, automatic settlement
monitoring, automatic bridge monitoring and other fields. After a
variety of different projects have been verified, the accuracy of
the instrument is credible and the performance is stable, leading
the new generation of automatic measurement.
Features:
1. Direct drive technology: a new generation of direct drive motor,
the maximum speed can reach 180°/s, high-resolution angle
fine-tuning, high-precision positioning;
2. Electric focusing: electric focusing, the focusing process is
stable and the operation is convenient;
3. Integrated compensation: A new generation of high-precision
integrated compensator is adopted, which is placed in the shaft,
and the compensation is faster and more stable
4. High-precision angle measurement: the dense bead shafting system
is adopted, the shaft and the shaft sleeve are matched by steel
balls to achieve interference fit, reduce the shaft clearance, and
the sliding friction becomes rolling friction, which improves the
angle measurement accuracy 4CCD radial reading system, and can
effectively eliminate eccentric error;
5. Bluetooth, RS232 communication: to meet the customer's remote
command control needs;
6. Automatic monitoring platform: it can realize 24-hour
all-weather monitoring, automatic measurement, automatic recording,
automatic analysis, automatic reporting, and the data can be stored
in the cloud or local computer according to user needs
Specifications:
| RS10 Robotic Total Station |
| Brand | FOIF |
| Model | RS10 |
| Angular Measurement |
| Angle Measurement Accuracy | 1" |
| Measuring Method | Absolute Encoder |
| Detecting Method | Four-probe |
| Min. Display | 0.1" |
| Distance Measurement |
| Reflectorless Range | 1000m |
| Reflective Sheet Range | 1200m |
| Single Prism Range | 6000m |
| Reflectorless Accuracy | 3mm＋2×10-6·D |
| Reflective Sheet Accuracy | 2mm＋2×10-6·D |
| Single Prism Accuracy | 1mm＋1×10-6·D |
| Time for Fine Mode | ＜0.7s |
| Telescope |
| Magnification | 30X |
| Image | Erect |
| Resolution | 3” |
| Focusing Range | 1.55 m |
| Field of View | 1°30’ |
| Shortest Focus Distance | 1.0m |
| Objective Aperture | Φ50mm |
| General |
| Display and Keyboard | 6“ (inch); Resolution 720 x 1280;Color; Touchscreen; Double
Displays; 15 keys |
| Compensator | Type: Integrated Dual-axis Range: ≥±6′ |
| Level Vial | Plate level:30″/2mm Circular level:8′/2mm |
| Laser Plummet | Type:635nm semiconductor leaser Accuracy:±1mm/1.5m Spot:≤2.5mm/0.5~2m |
| ATR | Working range:5～1000m Positioning accuracy:±1.5mm(≤200m); ±1.5 " (>200m) Positioning time(in the field of view of telescope):0.5-2S |
| Power | Battery: 11.1V 4.95Ah lithium battery Operating Time: 5~8 hours |
| Host System | OS: ANDROID 11.0 USB Type-C: Support SUB Host: USB 3.0 HOST WIFI: 802.11 a/b/g/n/ac/ax Bluetooth: 5.0 Network: 4G optional |
| Data Storage | 8GB+128GB |
| Data Interfaces/Communication | USB to RS232, USBC port, USB HOST port, short-range Bluetooth
standard, long-range Bluetooth (optional), various networks(4G
optional) |
| Dustproof and waterproof grade | IP55(IEC60529) |
| Working Temperature | -20℃ ～+50℃ |
| Storage Temperature | -40℃ ～+60℃ |
