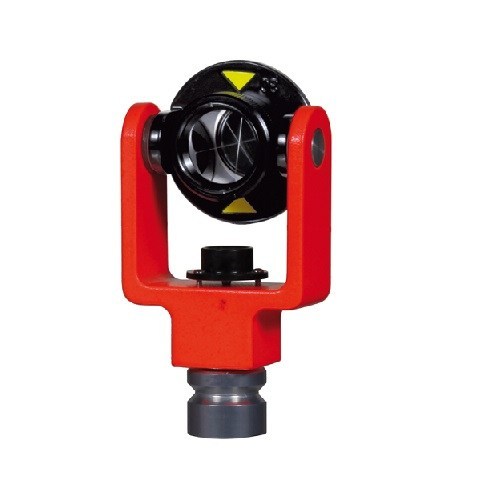

ADSmini102-A Mini Prism Set with Central Bubble for Surveying Total Stations

Model: ADSmini102-A

Specification:

Overview:

1. Metal holder with fish eye bubble

2. Dual sided target

3. 5/8” x 11 female thread.

4. Prism with target holder

5. S hook and U bracket

6. With Soft bag package

7. With set parts

8. With carrying bag

Optical Survey Prism Installation

Monitoring prisms should be installed using the following guidelines:

• Attached to a rigid structure that is sufficiently stiff as to not move through a single monitoring cycle
• Located to minimize the effects of temperature and radiant heat on a target
• Installed with clear sight lines back to the total station
• Avoid sight lines that require shooting through a fence or another mesh
• Avoid sight lines shooting just past corners which can cause refraction
• Avoid sight lines that include a source of heat that can cause a heat shimmer

Types optical survey prisms

• Mini prisms are cheap and reliable, and are a good multi purpose prism for short to mid range measurements.
• 360 prisms are simple to use for sharing prisms in a multi station network and all angles have a shared center.
• Dual prisms are reliable shared prisms with shared centers. They are less expensive than 360 prisms, but have to be aimed at each total station in a network.
• Full size reference survey prisms are ideal for high range precision monitoring and can be used to calibrate a monitoring network

Leosurvey Instrument Co.,Ltd is a professional surveying accessories supplier in China. Items we supply covers:

1. Prisms (reflector prism, prism set, 360 degree prism, mini prism)

2. Prism Pole, Bipods and Tripods

3. Levelling Staff (Invar, Manganese, Aluminum)

4. Tripods (Aluminum, Wooden, Fiberglass)

5. Tribrach and Adaptors

6. Battery, cable and Chargers of different brands

7. GNSS pole and accessories

Our mission is to supply high quality and excellent service for our customers and partners. Meanwhile, we can custom-make products for our clients with different requirements. We are looking for reliable distributors all around the world, welcome to contact us for more!
