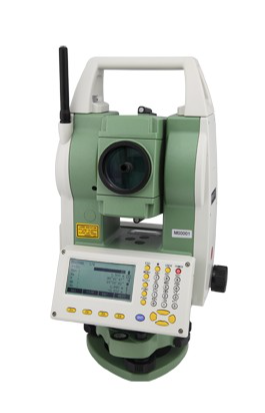

RTS330 Series FOIF Total Station with New Designed On-Board
Software Long Range Bluetooth
Model:RTS332/RTS335
Specifications:
| Model | RTS332/RTS335 |
| Image | Erect |
| Magnification | 30’’ |
| Shortest Focus Distance | 1.0m |
| Reading System | Absolute encoder |
| Accuracy of RTS332 | 2’’ |
| Prism | Class 1 |
| Measuring Range | 2.0 to 600m (R600) |
| Prism Accuracy | 2mm+2ppm |
| Measuring Time | 1.0s(Initial: 2.0sec) |
| Compensator | Dual-axis |
| Setting Accuracy | 1’’ |
| Plate Level Vial | 30’’/2mm |
| Circular Level Vial | 8’/2mm |
| Laser Plummet Accuracy | 1mm/1.5m |
| Image | Erect |
| Battery | 3400mAh Li-ion Rechargeable |
| Output Voltage | 7.4V DC |
| Operation Time | 19 Hours |
| Charger | FDJ6-LI(100v/240v) |
| Charging Time | 4 Hours |
| Display | Large LCD (240*128 dots) |
| CPU | 32Bit |
| Memory | 4GB internal memory, support SD card(16G Max) |
| Keyboard | Alphanumerical, both sides |
| Weight | 6.0Kg |
| Interface | USB/RS-232C/Bluetooth(optional) |
| Water and dust Protection | IP55 |
Overview:
Endless drives are applied on RTS330 series, users can collimate
target faster with two hands operation. There is a trigger key
mounted on the side of the instrument, user do not lose sight of
the target while measuring; It has 600m/1000m selectable long
reflectorless range. Bluetooth cable-free connection is optional.
Features:
● Horizontal and vertical endless drives are applied on RTS330
series, users can collimate target faster with two hands operation
● There is a trigger key mounted on the side of the instrument,
user do not lose sight of the target while measuring; this is
particularly important when a lot of points need to be measured
● Multiple data interface such as SD card, mini USB or RS-232C
connection are available
● Bluetooth cable-free connection offers solution of semi-automatic
data collection. Reflectorless measuring distance reaches to
600m(R600) or 1000m(R1000). High precision of 2mm+2ppm in prism
mode.
● On board software and application programs simplify and speed up
work in the field. The user is guided through the routines by clear
menus and measurement prompts
FOIF provides total station solutions to meet all your surveying
needs. Measurements have never been so easy to perform as with the
FOIF Total Station, which allows beginners and professionals to do
the job quickly and efficiently.
