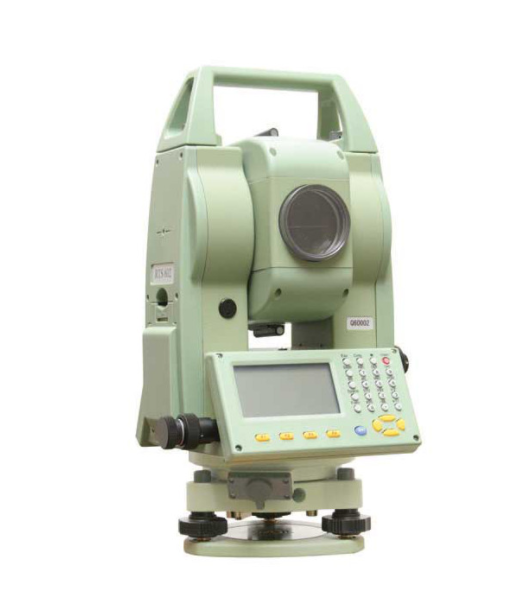

RTS680 Series Surveying Instrument FOIF Total Station with High
Quality
Model: RTS680
Specification:
| Model | RTS680 |
| Image | Erect |
| Magnification | 30’’ |
| Shortest Focus Distance | 1.0m |
| Reading System | Absolute encoder |
| Accuracy of RTS680 | 2’’ |
| Prism | 1.0-1.5s |
| Measuring Range | 2.0 to 600m (800m optional) |
| Prism Accuracy | 1.5mm+2ppm |
| Measuring Time | Initial: 2.5sec |
| Compensator | Dual-axis |
| Setting Accuracy | 1’’ |
| Plate Level Vial | 30’’/2mm |
| Circular Level Vial | 8’/2mm |
| Laser Plummet Accuracy | 1mm/1.5m |
| Optical Plummet Accuracy | 0.8mm/1.5m |
| Battery | 3400mAh Li-ion Rechargeable |
| Output Voltage | 7.4V DC |
| Operation Time | 12 Hours |
| Charger | FDJ6-LI(11v/24v) |
| Charging Time | 4 Hours |
| Display | Large LCD (240*128 dots) |
| CPU | 32Bit |
| Memory | 128M internal memory, support SD card |
| Keyboard | Alphanumerical, both sides |
| Weight | 5.5Kg |
| Dimension | 185*220*360mm |
| Data Transfer Software | FOIF Geomatics Office |
| Water and dust Protection | IP55 |
Overview:
EDM technology is improved, its powerful long reflectorless
measuring distance can reach 600m/1000m
Features:
● Powerful long reflectorless measuring distance
600m(R600)/1000m(R1000)
●High precision measurement,prism:2mm+2ppm
● Bluetooth cable-free connection (Factory optional)
● Could be operated with data collector, FOIF FieldGenius or the
third part software are available
● Guide light system is optional for easy stake out measurement
● Password function for security
Highlights:
Absolute Encoding
The absolute encoding disk ensures high accuracy, efficiency and
stable performance. Initialization is needless but to measure the
angle immediately. The azimuth information won’t be missed even the
total station is power-off unexpectedly.
Data Storage
128M internal memory, 120000 points and 40 jobs can be saved
Backlight
The display and keyboard with backlight for working in the dark.
FOIF Total Station
FOIF provides total station solutions to meet all your surveying
needs. Measurements have never been so easy to perform as with the
FOIF Total Station, which allows beginners and professionals to do
the job quickly and efficiently.
Overview of RTS100 Series Total Station
1. Alphanumeric Keyboard
2. Reflectorless measuring distance: 600m(R600)
3. Bluetooth cable-free connection (Factory Optional)
4. 120000 points and 40 jobs can be saved.
5. Can be operated with a data collector, FOIF FieldGenius, or
other third party software is available.
