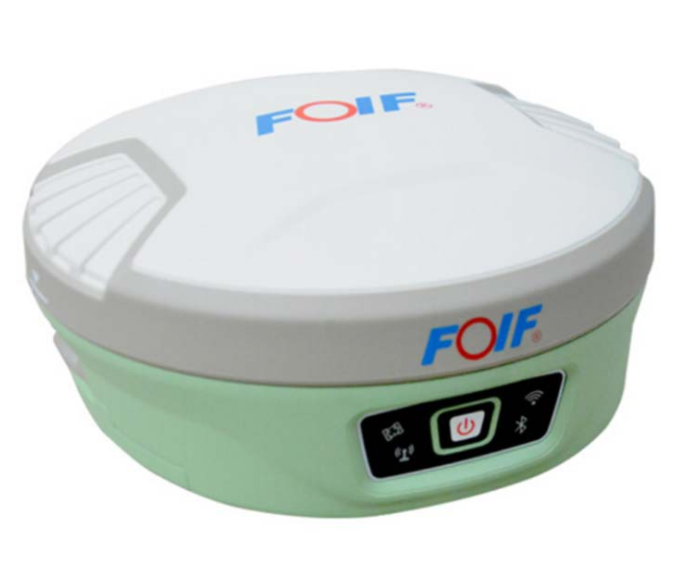

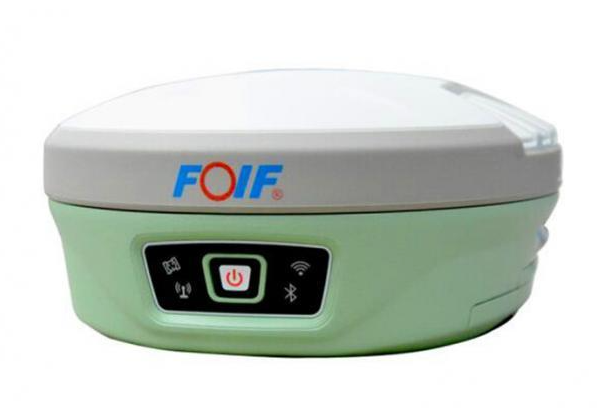

FOIF A90 GNSS Receiver RTK GPS with 1408 Channels

Model: A90

Satellite system:

1. Number of channels: 1408 channels

2. Satellite tracking characteristics: full constellation and full-band reception

BDS:B1I/B2I/B3I/B1C/B2a/B2b

GPS:L1C/A/L2P (Y)/L2C/L5

GLONASS:G1/G2/G3

Galileo:E1/E5a/E5b/E6

QZSS:L1/L2/L5

Accuracy Indicators:

Static: Horizontal±2.5mm+0.5ppm, Vertical±5mm+0.5ppm;

RTK: Horizontal±8mm+1ppm, Vertical±15mm+1ppm;

Initialization Time: <5S (typical)

Initialization reliability: >99.9%

Wireless Communication:

Bluetooth: Built-in, Bluetooth 2.1+EDR/ Bluetooth 4.0 BLE

WIFI: 802.11b/g/n, can be directly connected to the handbook through WIFI, support WEB UI

WEBUI wireless management: host upgrade, data download, parameter setting, station setting and other operations

UHF radio: integrated transceiver radio, channel sweeping, to avoid interference

Physical Properties:

Size: ¢156mm×76mm

Material: magnesium alloy for the lower cover, polymer plastic for the top cover

Battery capacity: 7.4V 6800mAh

Voice: Voice broadcasts the working status in real time

Interface: TNC interface, RS232C, SIM card slot, TF card slot, 1 button

Auxiliary functions: 4th generation inertial navigation tilt measurement, IMU inertial navigation module, 6-axis 400Hz dynamic output, no calibration required

Human-computer interaction: four LED indicators to display the working status of the host

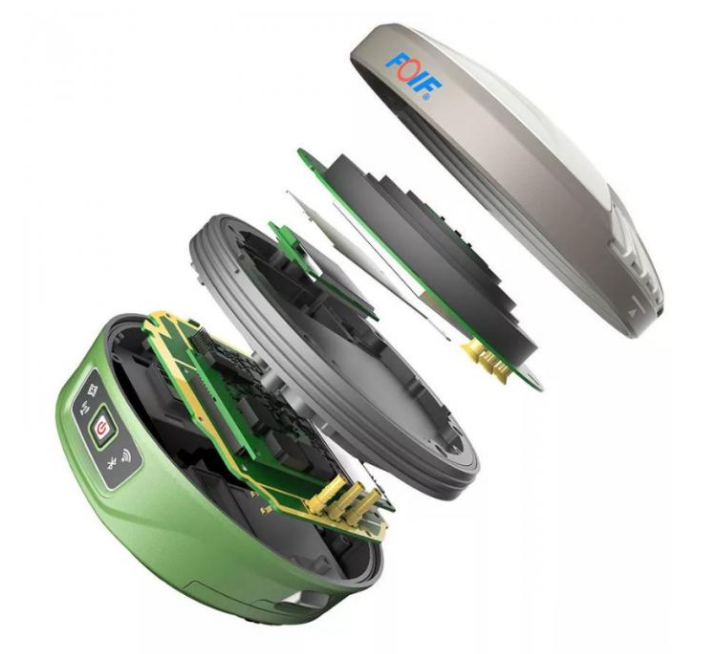

Detailed Pictures:
