GPR111 Surveying Reflector Prism

    Buy cheap GPR111 Surveying Reflector Prism from wholesalers

    Buy cheap GPR111 Surveying Reflector Prism from wholesalers
    • Buy cheap GPR111 Surveying Reflector Prism from wholesalers
    • Buy cheap GPR111 Surveying Reflector Prism from wholesalers

    GPR111 Surveying Reflector Prism

    Ask Lasest Price
    Brand Name : Leosurvey
    Model Number : GPR111
    Price : 20USD~30USD
    Payment Terms : T/T
    Supply Ability : 5000 pieces per month
    Delivery Time : 3-5 work day
    • Product Details
    • Company Profile

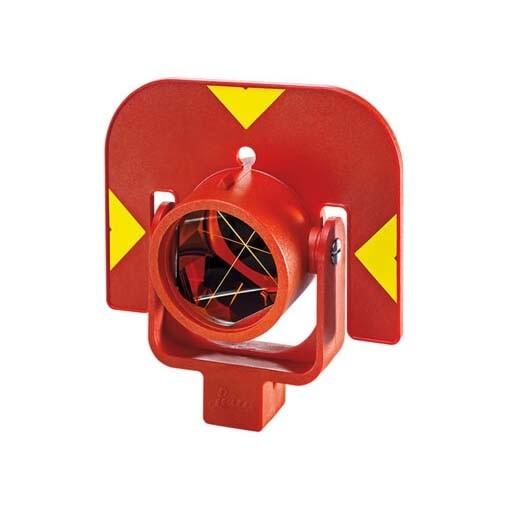

    GPR111 Surveying Reflector Prism

    Wholesale GPR111 Red Color Single Tilt Surveying Reflector Prism with Target for Leica Total Stations


    Model: GPR111


    Specifications

    Prism ConstantRangeCentering Accuracy
    0mm2500m2.0mm

    Features

    Plastic frame.

    Leica type of connector (no threads).

    Does not have a 5/8 x11 thread.

    Single tilt prism with soft bag

    Circular prism sealed in red polymer holder. Large integrated target plate provides good visibility.


    Optical Surveying Reflector Prism Applications

    Surveying reflector prisms are used by surveyors and engineers to measure the change in position of a target that is assumed to be moving. Survey prisms are used for a wide range of monitoring applications including:

    1. Rail Monitoring
    2. Settlement Monitoring
    3. Displacement Monitoring
    4. Deformation Monitoring
    5. Convergence Monitoring

    Optical Surveying Reflector Prism Installation

    Monitoring prisms should be installed using the following guidelines:

    • Attached to a rigid structure that is sufficiently stiff as to not move through a single monitoring cycle
    • Located to minimize the effects of temperature and radiant heat on a target
    • Installed with clear sight lines back to the total station
    • Avoid sight lines that require shooting through a fence or another mesh
    • Avoid sight lines shooting just past corners which can cause refraction
    • Avoid sight lines that include a source of heat that can cause a heat shimmer
