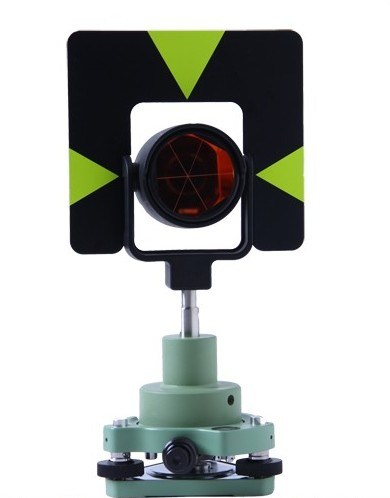

Surveying Single Prism Set for Leica Total Station with Tribrach and Carrier

Model: ADS16-1

Specification:

This Prism Set Includes:

1pc Leica type prism

1pc Leica type Tribrach withoptical plummet

1pc Leica type tribrach Carrier without optical plummet

1pc Carry Case

Introduction:

High accuracy

Leica type

Three jaw tribrach with optical plummet

With bubble level

Reflector centering accuracy 1.0mm

Plummet accuracy 0.5mm at 1.5m

Tribrach Carrier/Adaptor without optical plummet

With Longitudinal bubble

Types optical survey prisms

• Mini prisms are cheap and reliable, and are a good multi purpose prism for short to mid range measurements.
• 360 prisms are simple to use for sharing prisms in a multi station network and all angles have a shared center.
• Dual prisms are reliable shared prisms with shared centers. They are less expensive than 360 prisms, but have to be aimed at each total station in a network.
• Full size reference survey prisms are ideal for high range precision monitoring and can be used to calibrate a monitoring network

Leosurvey provides a wide range of total station survey prisms for every application. Our premium quality prisms have been rigorously tested and are trusted by our customers to provide reliable and accurate measurements on large construction projects across the world. The optical survey prisms we provide can be used with any brand of total station including Topcon, Sokkia, Leica Geosystems, Trimble Geospatial, Nikon, and GeoMax..

The range of a prism results from, among other things, its coating and the glass geometry. A number of Original prisms from Leica Geosystems have a special coating on the reflective surfaces – the Anti-Reflex Coating, and a copper coating on the reverse side. Without these, the range of distance measuring, ATR and Powersearch would be reduced by up to 30%. The workmanship and the durability of the copper coating are decisive for a long life. The glass dimensions, the position in the holder and with it the areal orientation, are important for measuring accuracy.

Leosurvey Instrument Co.,Ltd is a professional surveying accessories supplier in China. Items we supply covers:

1. Prisms (reflector prism, prism set, 360 degree prism, mini prism)

2. Prism Pole, Bipods and Tripods

3. Levelling Staff (Invar, Manganese, Aluminum)

4. Tripods (Aluminum, Wooden, Fiberglass)

5. Tribrach and Adaptors

6. Battery, cable and Chargers of different brands

7. GNSS pole and accessories

Our mission is to supply high quality and excellent service for our customers and partners. Meanwhile, we can custom-make products for our clients with different requirements. We are looking for reliable distributors all around the world, welcome to contact us for more!
