Leica Surveying Prism Set with GDF322 Tribrach and GRT144 Carrier
Adaptor
Model: LPS2
Specification:
| Type | Single Prism Set |
| Original Leica Brand | Yes |
| Prism Model | GPR1 |
| Prism Constant | 0mm |
| Centering Accuracy | 2.0mm |
| Prism Size | 62mm |
| Prism Type | Circular |
| Tribrach Model | GDF322 |
| Tribrach Type | With Optical Plummet |
| Torsional Stiffness | <1" |
| Adaptor/Carrier Model | GRT144 |
| Package | Plastic Carry Case |
| Used for | Leica Total Station |
This Prism Set Includes:
1pc Leica GPR1 Prism with GPH1 Holder and GZT4

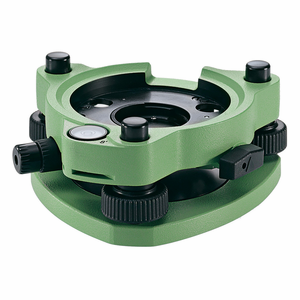

1pc Leica GDF322 Tribrach
1pc Leica GRT144 Tribrach Carrier
1pc Carry Case
The optimal prism for your application
Leica Geosystems offers a transparent selection of prisms in
various sizes for different areas of application. These are
standard prisms, special prisms, mini prisms as well as monitoring
prisms.
HIGHEST ACCURACY
The prisms distinguish themselves through a centring accuracy of
under 1mm and the best possible beam deviation of < 2" to
achieve the maximum range.
MAXIMUM LIFETIME
Optimised for common operating distances, these prisms exhibit a
beam deviation of up to 8" The special working of the optical
coating, unique on the market, provides an above average lifetime.
COST EFFECTIVE MEASURING
Despite its attractive cost-performance ration, the 1000 series
fulfils the strict Leica Geosystems process controls as well as
users’ high demands regarding lifetime.
How does a survey prism work?
Survey prisms can be used with another electronic distance
measurement (EDM) device to determine the distance of an object
from a specific survey point, and they’re often attached to a prism
pole so they can focus on a specific position.
Corner cube prisms (also called “ retroreflectors”) are often used
for this type of measurement, and they will have some type of
offset because the beam being transmitted from the device takes
longer to leave the prism (especially from longer distances). This
can be corrected by using a feature that accounts for this offset
in relation to the plumb line of the surveying prism pole.
What is the best way to use a prism?
A precise tip will allow you to use a variety of prism heights —
from mini to full-size. Just put the prism you want to use on the
pole, and make sure it’s even for proper reading. For a more
precise adjustment, it’s best to do it horizontally on the floor.
