1m Cutomizable Precision Baroded Invar Staff Surveying Rods with
Megnetic Base for Digital Levels
Model: ISB1
Specification:
| Model | ISB1 |
| Used For | Digital level |
| Random Graduation Errors: | ≤ 2μm |
| Length | 1m |
| Net Weight | 7Kg/Pc |
| Customizable | Yes |
| Material | Invar tape |
| Color | Yellow |
| LED Light Strip | Optical |
| Invar Tape Specification | 0.7×25mm |
| Rod Body Straightness | ≤4mm |
| Error of Every Meter | ≤0.04mm |
| Package | Aluminum Case |
The barcodes can be supplied for the following brands:
Leica DNA and LS digital level
Leica Sprinter digital level
GeoMax SDL digital Level
FOIF EL series digital level
South DL series digital level
Topcon DL10 and DL5 digital level
Sokkia SDL sereies digital level
Trimble DINI digital level
Invar Staff Rods Introduction
Invar Grade Rods are used in land surveying when first-order
high-precision elevation leveling is to be performed. The Grade
Rod, also known as Leveling Rods and Leveling Staff are made of
Invar which is a nickel–iron alloy notable for its uniquely low
coefficient of thermal expansion. The name "Invar" comes from the
word invariable, which refers to its relative lack of expansion or
contraction with temperature changes which directly lends itself to
making the most reliable rod for measuring elevation changes in
land.
Leosurvey Invar Rods Features
- Superior graduation accuracy and high quality image of stripes.
- Body of the Invar staff made of rigid aluminum profile with
anodized surface. It makes sure it is not easy to get deformed in
the process of measurements and very convenient to carry.
- Invar tape seated in a protection groove of staff profile and
tensioned by soft spring to compensate extension coefficient of
staff profile.
- Foot plate of chrome-alloy; hardened, smooth and ground.
- Equipped with two circular bubbles and fold-away handles. Handles
zinced and powder-coated.
- Staff Length is customizable according to customers’ needs.
- LED strip lights is optional. It can be used in mines, tunnels,
night-time construction sites. Equipped with two pieces of power
bank.
Leosurvey Barcoded Staffs:
We can supply both barcoded staff and graduated staff for
customers. Barcode marking staff is used for digital levels and
graduated marking staff is used for optical levels.
So far we have supplied levelling staffs for many different levels
brands like Trimble, Topcon, Leica, GeoMax, South, Sokkia, etc.
50cm 1m 2m 3m are available.

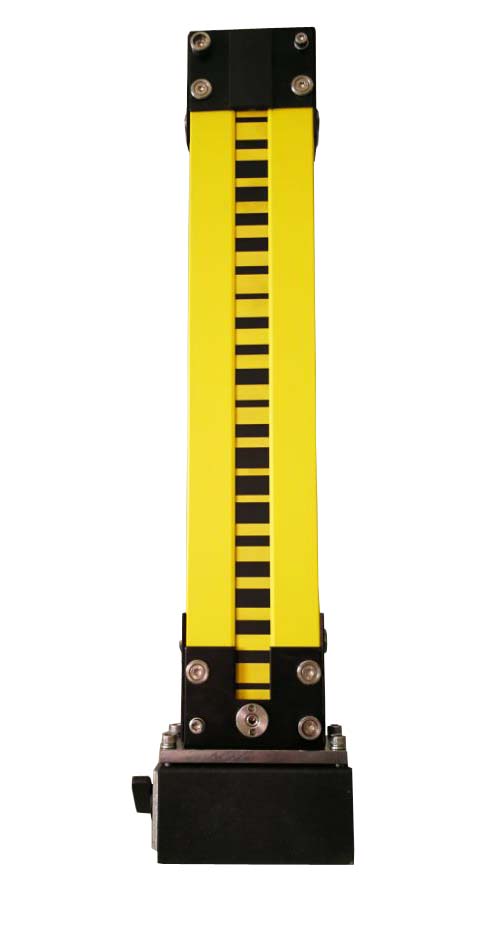

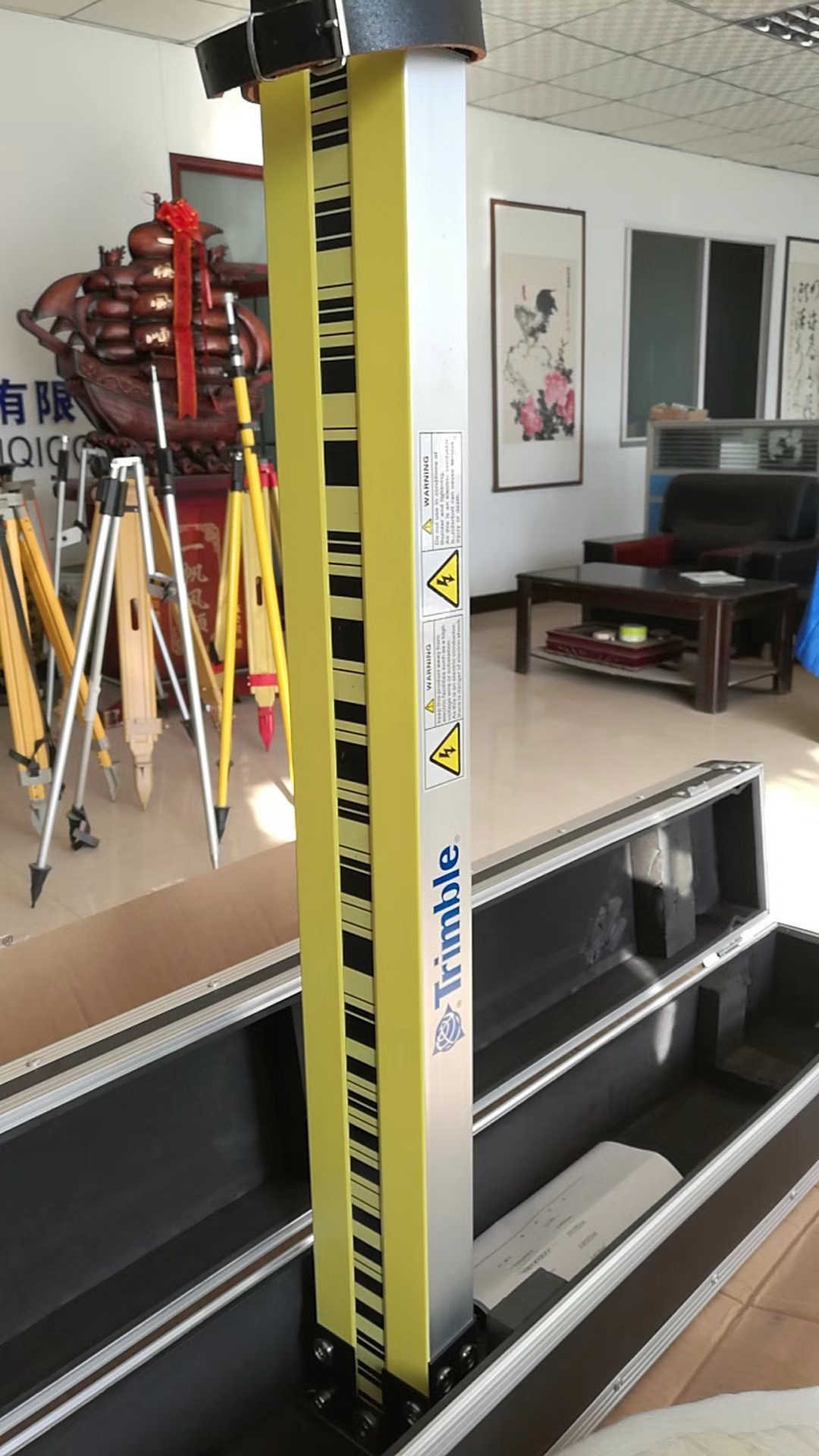

Detailed Pictures:
