Total Station Surveying Instrument High Measurement Accuracy 2″
5000m Single Prism
Model: RTS112S
Features:
◎ New Stent Design
◎ New Fast Digital Rangefinder Head
◎ 32-bit Microprocessor
◎ Optimize the software job flow
◎ Long Distance non prism (Rseries)
◎ Absolute Coding System
◎ USB Port Fast Communication
◎ Big Capacity Storage
◎ Large capacity Lithium battery
◎ Bluetooth communication function
◎ With line calculation, traverse adjustment function
Specifications:
| Telescope |
| Field of View | 1°30′ |
| Effective Aperture of Objective Lens | Φ45mm |
| Resolution | 3 ″ |
| Magnification | 30X |
| Minimum Visual Distance | 1.0m |
| Ranging |
| Accuracy | ± (2mm+2x10-6 D) |
| Ranging | 5000m/single Prism |
| Crude Test | 1.2s |
| Tracking | 0.5s |
| Angle Measurement |
| Method | Absolute Encoding |
| Angle Measuring Accuracy | 2″ |
| Min. Reading | 1″/5″ |
| Compensator |
| Compensation Method | Double Axles Compensation |
| Compensation Range | ±3′ |
| Power Supply |
| Operating Voltage | 7.4VDC (rechargeable lithium ion battery) |
| Working Hours | Continuous measuring angle ranging about 10 hours, continuous angle
of about 45 hours |
| Others |
| Communication | RS-232C/USB (optional) SD card (optional)/Bluetooth (optional) |
| Memory | 120000 points |
| Keyboard | Numerical Keyboard |
| Waterproof, Dustproof | IP66 |
Highlights:
1 Dual OLED screen
2 SD Card, Bluetooth
3 USB, RS232
4 (x2) Batteries with over 26 hours of working time
5 Onboard application programs
Other Models Available:
RTS112SL
RTS110SR5
RTS112SR6
RTS110SR10
RTS110SR8
Total Station Accessories:
1. Instrument
2. Batteries (x2)
3. Battery charger
4. Communication cable (D30-2200)
5. Reflective sheets 30×30 mm (x4)
6. Reflective sheet 60×60 mm (x1)
7. Tool kit
8. Rain protection bag
9. Instruction manual
10. Carrying case
Battery in Total Station
- Mounting the battery
Insert the battery by aligning the battery pack’s tenon with the
notch in the instrument, press the battery clamp and push the top
of the battery pack until you hear a click.
- Removing the battery
Press the battery clamp and remove the battery pack by pulling it
toward you.
- Battery Indicator
Battery power display indicates the power condition. You should
recharge or replace the battery when you hear the continue buzz.
Please turn off in the normal way in order to save the data. Please
find the battery operating time on specifications.
Recharge in Total Station
- Plug the charger on 100-240VAC (50-60Hz) power supply, the red lamp
lighting.
- When recharge is complete, the light become green. Normally, it
will take about 3~4 hours.
Caution: For indoor use only.
Note:
- The new battery (or not the used for long time) need to recharge
and discharge for several times, the battery could become the good
performance for using. Please recharge more than 10 hours.
- Please prolong charge 1~2 hours after green lamp lighting to reach
the best performance.
- Lamp situation:
Red lamp lighting--charging;
Green lamp lighting--charge complete
Red lamp flash—waiting, not connecting or battery defective.
- If the red lamp flashes when plug the charger, please remove the
charger and wait a minute to plug it again.

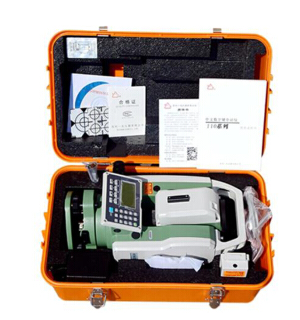

Package: Hard Carrying Case

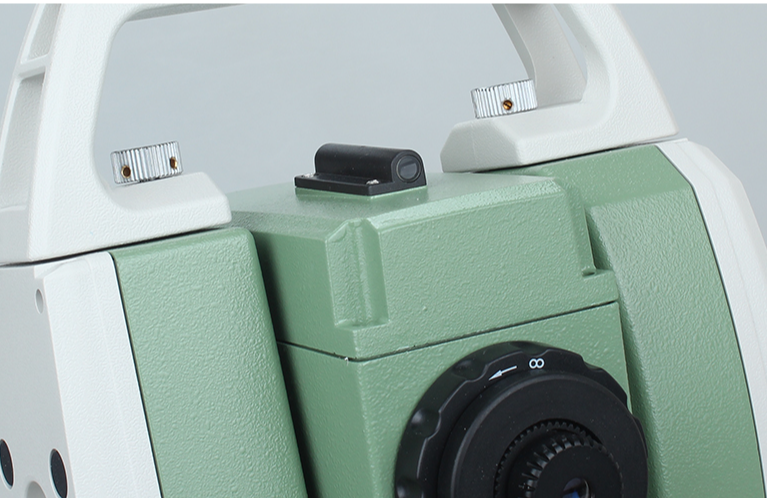

Detailed Pictures
