UniStrong GNSS Receiver G970C Pro Multi Frequency 800 Channels
Hemisphere S621 GPS IMU Tilt RTK Surveying Instrument
Model: G970 C Pro
Technical Data:
| Model | G970C Pro |
| Channels | 800 GPS/BDS/GLONASS/Gailileo/QZSS/L-band |
| Static Accuracy | H: 2.5mm±1ppm , V: 5mm±1ppm |
| RTK Accuracy | H: 8mm±1ppm , V: 15mm±1ppm |
| SBAS | 0.5m (initialization time < 10s, initialization reliability >
99.9%) |
| OS | Linux |
| Bluetooth | V2.1+EDR/V4.1Dual, Class2 |
| IMU Tilt Survey | 60 Degree, Fusion positioning, 400Hz refresh rate |
| Network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) |
| Interface | 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB + RS232) |
| Weight | 1.2Kg with battery |
| Internal Memory | 8GB, support expandable MicroSD |
| Size | Φ156mm×H76mm |
| External Power Supply | DC 9-18V, with overvoltage protection |
| Battery Capacity | 7.2V, 24.5Wh(standard two batteries) |
Overview:
Since G970C PRO launch, G970C PRO has been recognized by the
majority of users for its excellent quality and excellent
performance, and has become a star product in the RTK market. Now
the G970C PRO is newly updated, the G970C PRO is launched, and a
new inertial navigation technology is added to support the fusion
positioning.
Core Technology:
The G970CPRO Extreme Edition is equipped with a new generation of
high-precision positioning boards, 800 super channels, supporting 4
satellites full-band satellite signal reception, and fully supports
the fourth-generation GNSS positioning technology.
- A new generation of Athena RTK engine to effectively improve the
initialization speed and accuracy in harsh environments.
- Support “ATLAS” L-Band signal receiving, single-machine
centimeter-level positioning accuracy anywhere in the world.
- Support “aRTK” technology, maintain a fixed resolution for a period
of time in the case of a differential data link interruption.
Fusion Positioning
- Using fusion positioning technology, built-in high-precision IMU
inertial navigation module, patented IMU inertial navigation and
GNSS fusion positioning algorithm
- Support 400Hz positioning data output, tilt 60 degrees positioning
accuracy 2cm, can do tilt measurement
- Surveying at any time.
Combined Antenna
A new generation of combined antennas, GNSS, WiFi, Bluetooth, 4G.
The antenna is integrated, the system level is optimized, and the
signal strength is improved Up 30%!
Dual Batteries Dual Insurance
Dual battery+ dual battery compartment double insurance design,
unque ingenuity, battery self-contained power intelligent detection
chip, remaining power, one click know!
Intelligent System
Based on intelligent operating system, the newly designed new
generation WebUI makes RTK operation as simple as the Internet.
Intelligent TTS voice prompts support user DIY settings
UniCloud private cloud service, remotely control the working
status, make your instrument smarter!

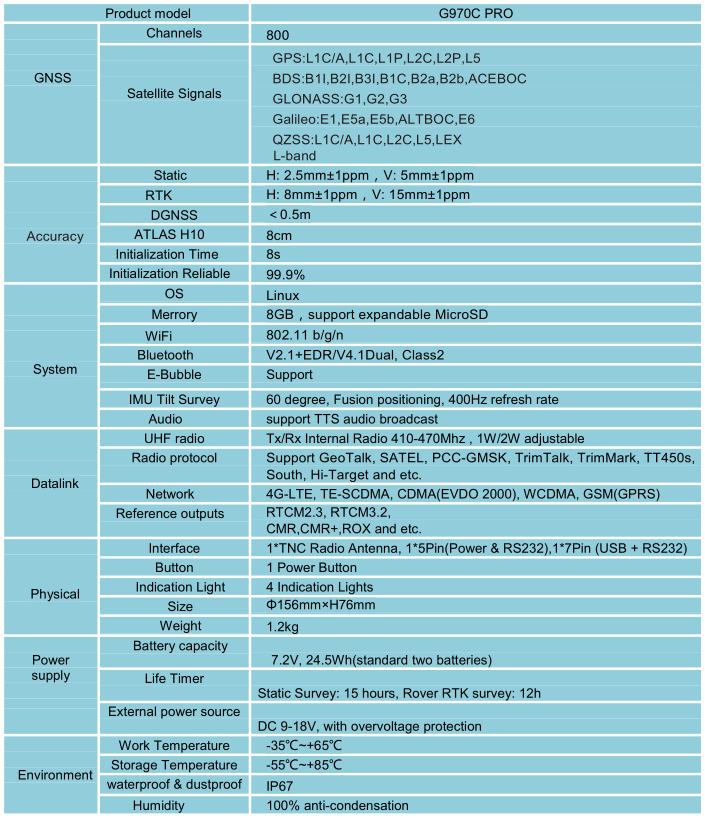

Detailed Specification
Package:
