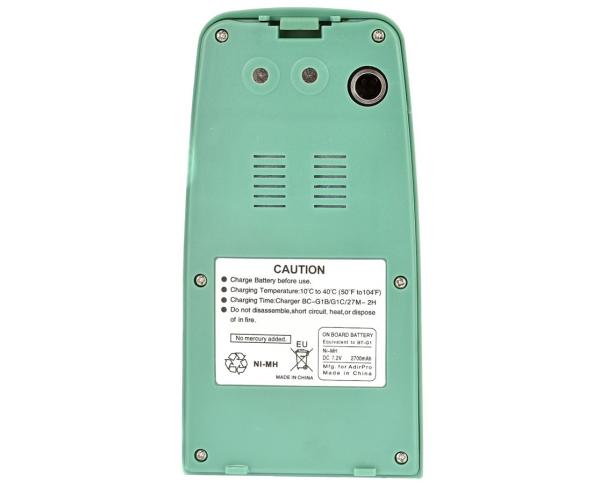

Topcon BT-G1 Battery for Topcon GTS-105N Series Total Station Batteries Surveying Equipment

Model: BT-G1

Specifications:

Introduction:

The BT-G1 / G1S NiMH Battery for Topcon GTS-105N Total Stations is the best solution for long hours of survey work. Featuring a 7.2-volt power, this NiMH rechargeable battery also offers a large nominal capacity of 2,300 mAh. Plus, it charges the Topcon GTS-105N total station within two or three hours only. This total station accessory has a compact size of 140*80*35mm.

Highlights:

• Works with the obsolete Sokkia GTS-105 / SET02N total station and Topcon GST-105N Total Staton
• NiMH rechargeable battery
• Power: 7.2 V
• Capacity: 2,300 mAh
• Charges within 2 to 3 hours
• Compact size: 140*80*35mm

Charging the batteries

New and stored batteries

New NiCd and NiMH batteries reach their maximum capacity only after a few charging and discharging cycles. The batteries should be fully discharged and charged three to five times. NiMH batteries that have been stored and not used for an extended period (more than a month) should be refreshed simularly. For Li-Ion batteries, a single discharging and charging cycle is sufficient. Alternatively, the batteries can be charged and then placed in the related survey equipment during normal use and discharged until the equipment switches off.

Batteries in regular use

After use the battery can be placed in the charger until fully charged (the green light flashes). The charging time depends on the battery capacity and temperature.

Charging temperature

The charging temperature (ambient temperature) has a significant impact on the life of the batteries. Charging at high temperature can cause loss of capacity. These losses in capacity are irreversible. Even with several charging and discharging cycles, the original capacity can no longer be obtained. For optimal charging, we recommend that the batteries be charged at ambient temperatures as low as possible (+10 °C to +20 °C / +50 °F to +68 °F). The permitted temperature range in which charging can still be performed is between 0 °C and +35 °C (+32 °F and +95 °F).

Useful capacity

The temperature has a particularly significant effect on the useful capacity of a battery. In accordance with the operating range for the surveying instruments, the batteries can be operated from –20 °C to +55 °C (–4 °F to +131 °F). With reducing temperature the useful capacity drops rapidly. Continuous use in the upper temperature range (> +45 °C / +131 °F) shortens the life of the battery.
