ISBT3 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m
for DINI Series Level
Model: ISBT3
Specification:
| Model | ISBT3 |
| Used For | Timble DINI digital level |
| Random Graduation Errors: | ≤ 2μm |
| Length | 3m |
| Net Weight | 13Kg/Pc |
| Gross weight for 2pcs with Package | 33Kg |
| Material | Invar tape |
| Color | Yellow |
| LED Light Strip | Optional |
| Invar Tape Specification | 0.7×25mm |
| Rod Body Straightness | ≤4mm |
| Error of Every Meter | ≤0.04mm |
| Package | Aluminum Case |
Trimble DINI Digital Level
Trimble DINI Digital Level is a digital height measurement sensor
from Trimble’s Integrated SurveyingTM portfolio of products. The
Trimble DiNi is a field-proven tool designed for any job site where
fast and accurate height determination is required. Use the Trimble
DiNi for applications such as precise leveling of flat and sloping
surfaces, establishing the vertical component of grade and ground
profiles, subsidence monitoring, and establishing the vertical
component of control networks.
Overview:
Invar Grade Rods are used in land surveying when first-order
high-precision elevation leveling is to be performed. The Grade
Rod, also known as Leveling Rods and Leveling Staff are made of
Invar which is a nickel–iron alloy notable for its uniquely low
coefficient of thermal expansion. The name "Invar" comes from the
word invariable, which refers to its relative lack of expansion or
contraction with temperature changes which directly lends itself to
making the most reliable rod for measuring elevation changes in
land.
Invar staff with Barcode is used to accurately determine
differences in elevation. It is an essential accessory to digital
levels and allows them to measure the height and the distance to
the leveling rod at the press of a button.
With a rigid aluminum body, the invar staff features and invar tape
tensioned by soft spring to ensure that it doesn’t expand or
contract with temperature changes. It has a length of two meters or
three meters and two attached handles for stable positioning. The
barcode staff also has two circular bubbles for superb leveling
precision in various industrial applications.
To electronically read the staff, make sure the invar staff with
barcode is facing the digital auto level. The height of the staff
where the level beam crosses the leveling rod will be shown on a
digital display. This process greatly eliminates human error and
increases accuracy.
Features:

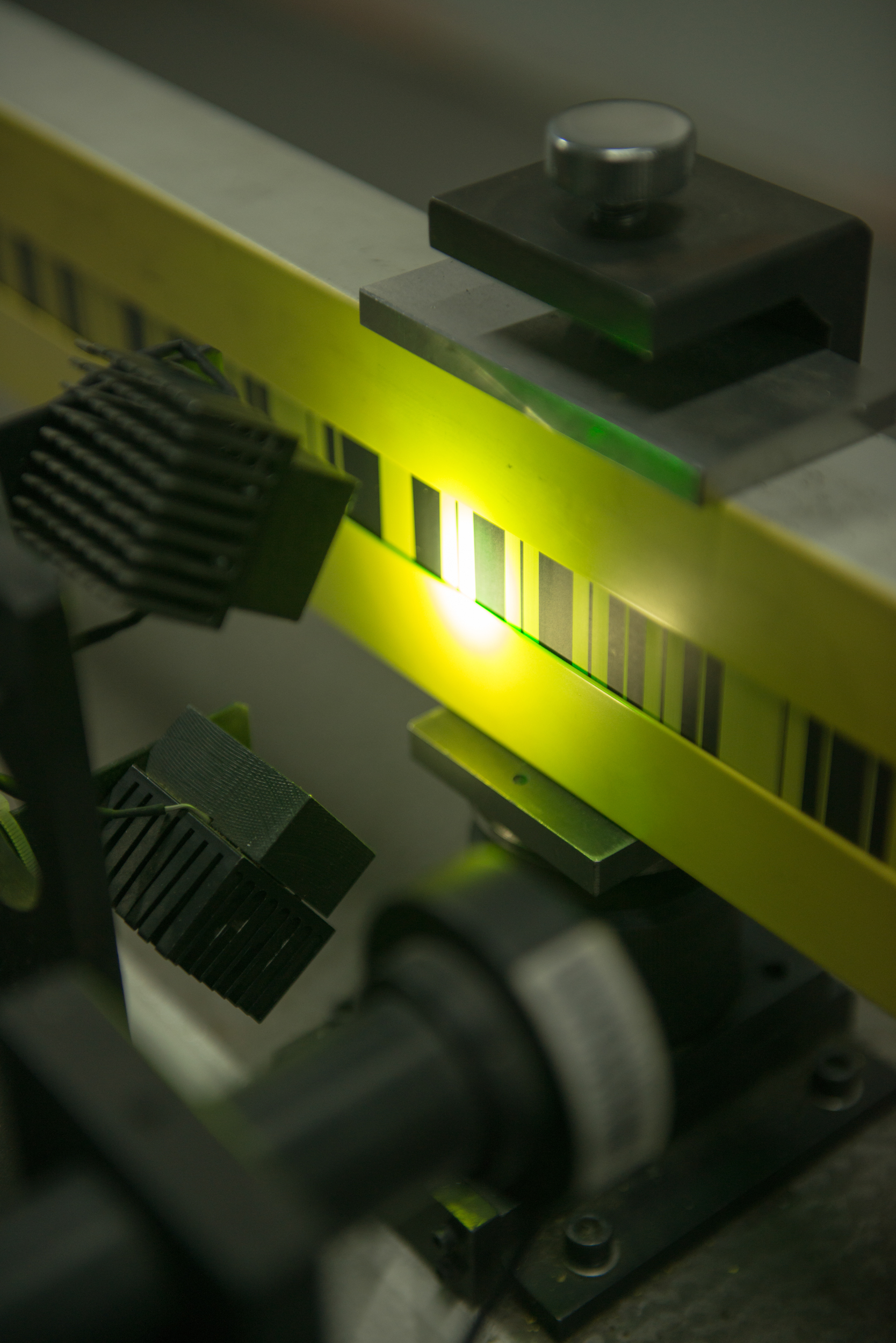

- Superior graduation accuracy and high quality image of stripes.
- Body of the Invar staff made of rigid aluminum profile with
anodized surface. It makes sure it is not easy to get deformed in
the process of measurements and very convenient to carry.
- Invar tape seated in a protection groove of staff profile and
tensioned by soft spring to compensate extension coefficient of
staff profile.
- Foot plate of chrome-alloy; hardened, smooth and ground.
- Equipped with two circular bubbles and fold-away handles. Handles
zinced and powder-coated.
- Staff Length is customizable according to customers’ needs.
- LED strip lights is optional. It can be used in mines, tunnels,
night-time construction sites. Equipped with two pieces of power
bank.
