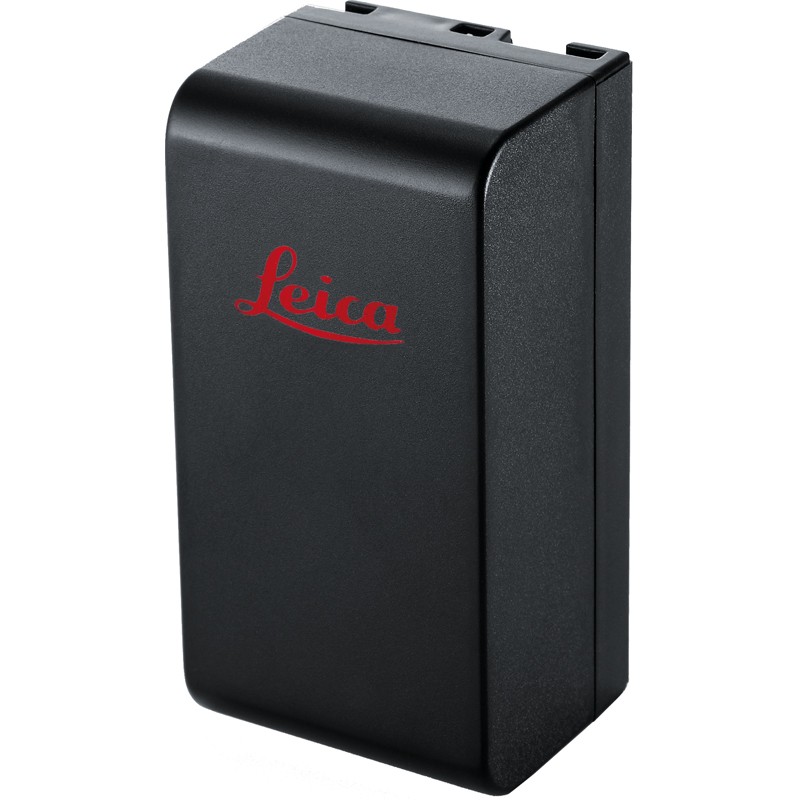

Leica GEB121 TPS400/800 Total Station Battery DNA Auto Level Battery

Model: GEB121

Specifications:

Overview:

The Leosurvey NiMH Battery for Leica Total Stations is an excellent spare or replacement for the OEM Leica GEB121 battery. It powers up the Leica TPS400, TPS800 total stations and Builder theodolites, such as the T100, T200, R100, R200, R100M and R200M.

It has an output voltage of 6V and 4200 mAh capacity. The charging time is approximately 2.5 hours using theGKL112 charger. Surveyors can also charge two batteries simultaneously with the Leica GKL221 in conjunction with the Leica GDI222 adapter.

This item is not manufactured by Leica.

Used For Instruments:
TPS400, TPS700, TPS800, DNA instruments, RCS1100, SR500, TPS1100, TPS1101, GPS500, TC402, TPS300, TC403, TC405, TPS700, TC406, TC407, TPS1000, TC802, TC803, TPS1100C, TC805, TC1102, TC1102C, DNA03/10, TCR402, SR500, TCR405, SR510, TCR405 Power, SR520, TCR406, SR530 GPS, TCR406 Power, GS50, TCR407, GS50 GPS, TCR802 Power, RCS1100, TCR803 Power, 400, TCR805 Power, 700, TCR1102C, 800

Useful Capacity

The temperature has a particularly significant effect on the useful capacity of a battery. In accordance with the operating range for the surveying instruments, the batteries can be operated from –20 °C to +55 °C (–4 °F to +131 °F). With reducing temperature the useful capacity drops rapidly. Continuous use in the upper temperature range (> +45 °C / +131 °F) shortens the life of the battery.

Storage

Leica Geosystems batteries can be stored at –40°C to +55 °C (–40 °F to +131 °F). Do not store batteries inside the surveying instrument. After storage, charge the battery fully before use. NiCd NiCd batteries can be stored for an unlimited period in any state of charge. NiMH NiMH batteries must always be stored fully charged and recharged after 180 days at the latest. High temperatures and high atmospheric humidity accelerate self-discharging. We recommend storage in the range from 0 °C to +20 °C (+32 °F to +68 °F) in a dry environment. If NiMH batteries are stored in the discharged state for an extended period irreversible damage can be caused. Li-Ion Li-Ion batteries start to deteriorate from manufacture. To reduce the aging effect, store the battery in a cool place at 10%–50% state-of-charge. Li-Ion batteries do not require regular charging while in storage.

Leosurvey Instrument Co.,Ltd is a professional surveying accessories supplier in China. Items we supply covers:

1. Prisms (reflector prism, prism set, 360 degree prism, mini prism)

2. Prism Pole, Bipods and Tripods

3. Levelling Staff (Invar, Manganese, Aluminum)

4. Tripods (Aluminum, Wooden, Fiberglass)

5. Tribrach and Adaptors

6. Battery, cable and Chargers of different brands

7. GNSS pole and accessories

Our mission is to supply high quality and excellent service for our customers and partners. Meanwhile, we can custom-make products for our clients with different requirements. We are looking for reliable distributors all around the world, welcome to contact us for more!
